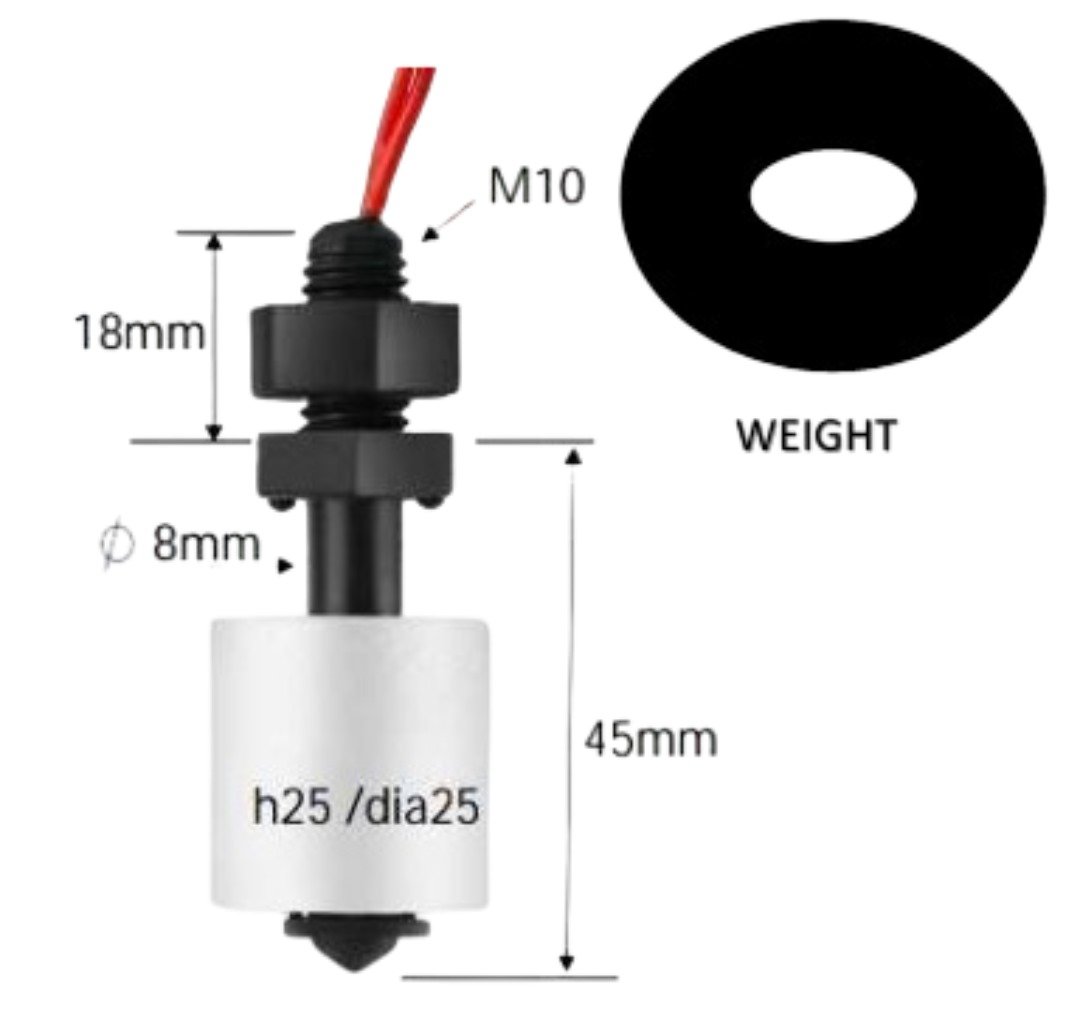

MAGNETIC FLOAT SENSOR VERTICAL (MGTP-45MM)
Description
A vertical magnetic float sensor is a type of liquid-level switch. It’s used to detect whether the level of a liquid in a tank or vessel has reached a certain point. The “vertical” part means the sensor is mounted top-down (or bottom-up) along a vertical axis.
Electrical Characteristics
| Contact Form | Single Switch MGTP2-NO (Normally Open) / MGTP2-NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5×10⁶ Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.90 (1 mtr) | Rs.99 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)

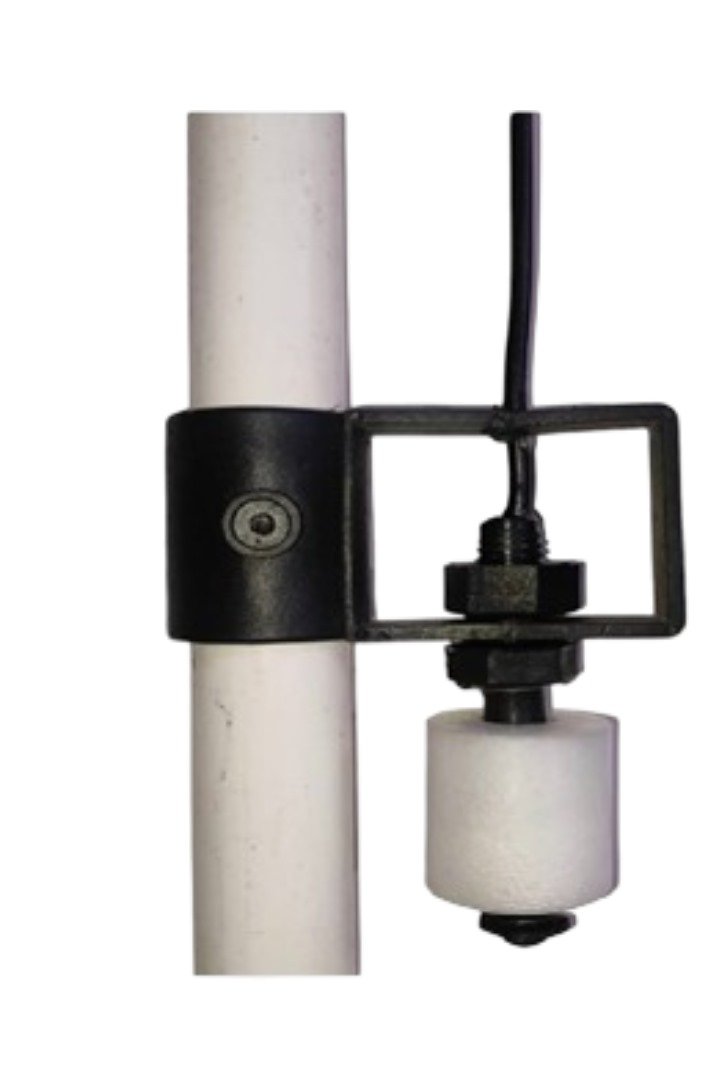

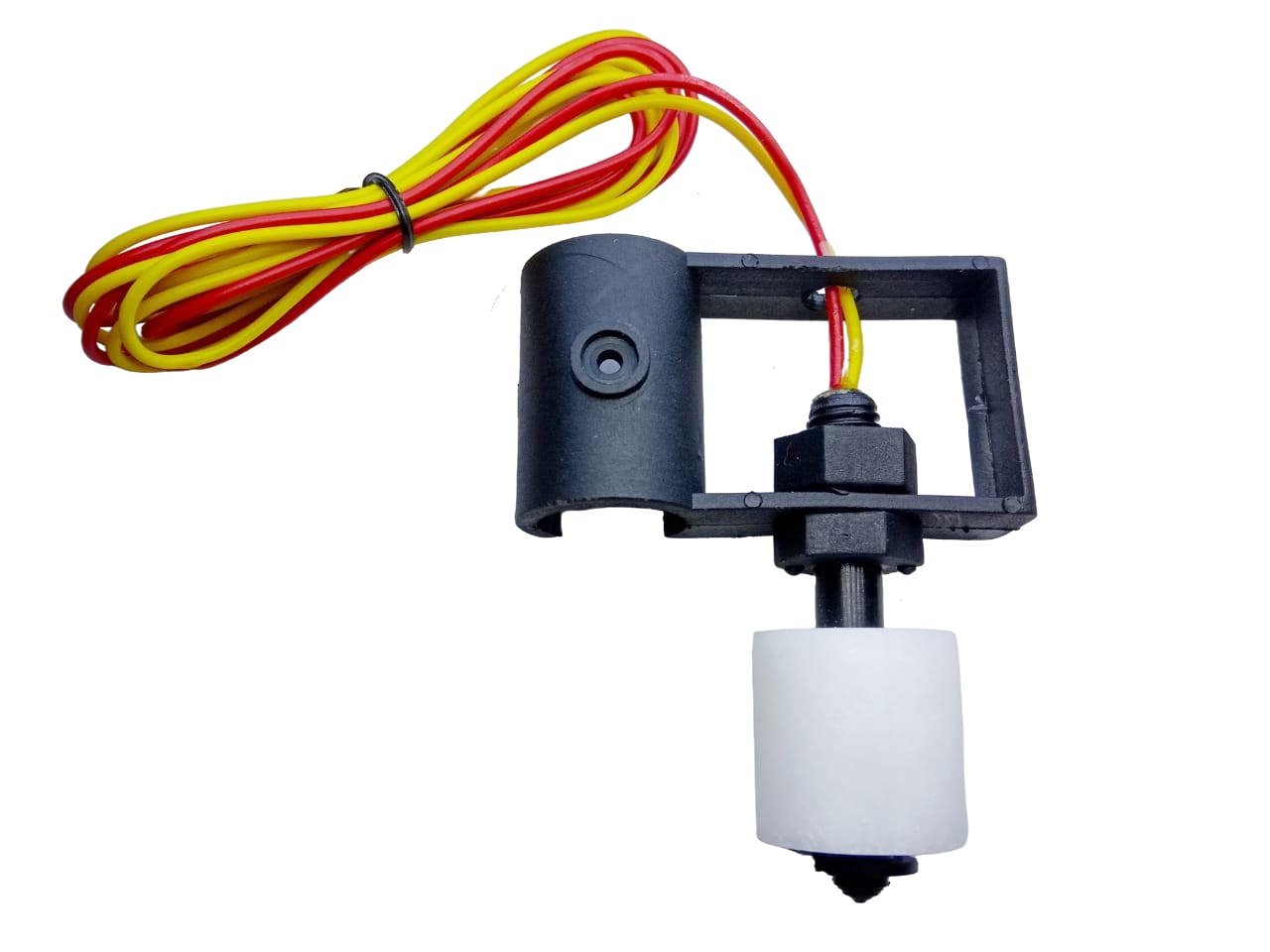

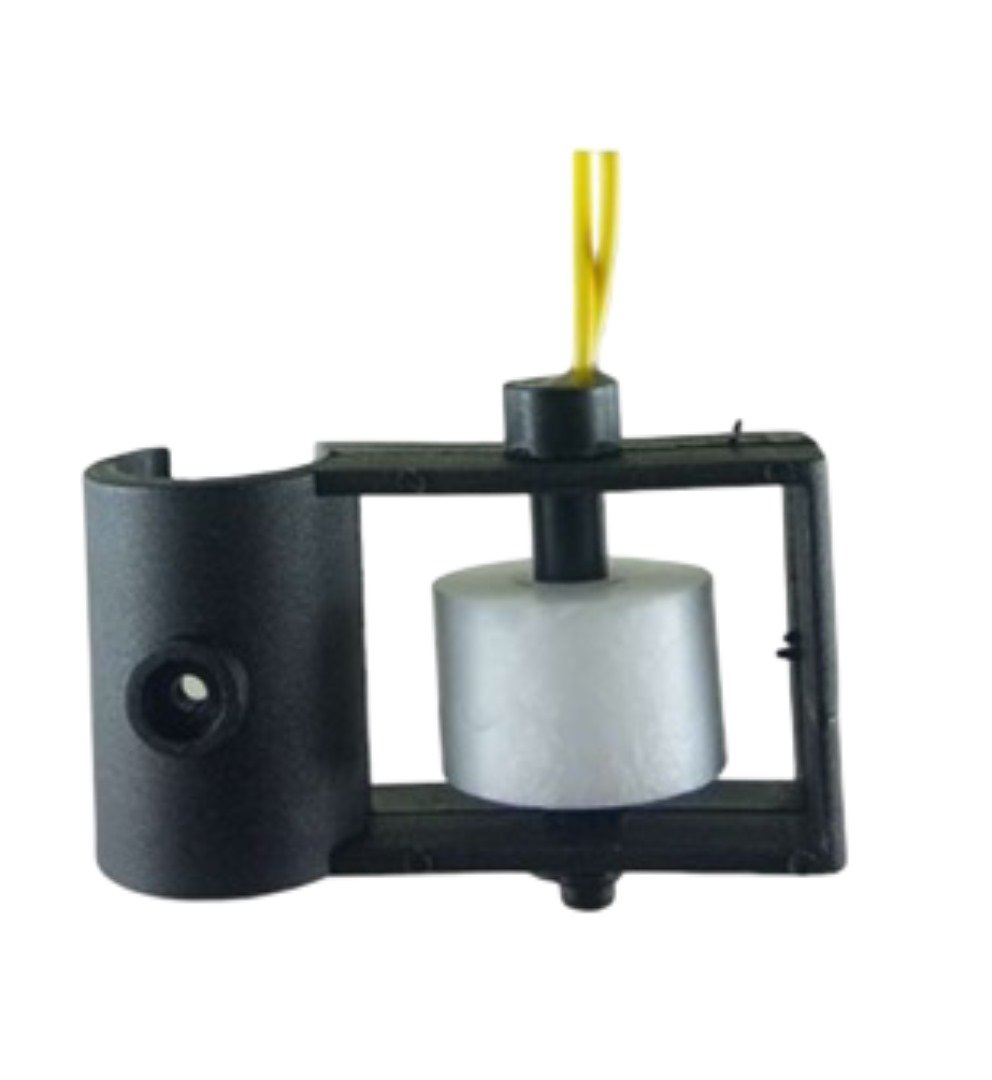

MAGNETIC FLOAT SENSOR WITH¾”PIPECLIP(MGPM)
Description
A magnetic float sensor with ¾'' pipe clip is a liquid-level switch that senses water level using a magnetic float and internal reed switch. It clips directly onto a ¾-inch pipe for easy, drill-free installation. The sensor provides NO/NC output for pump control, automation, or level indication.
Electrical Characteristics
| Contact Form | Single Switch MGTP2-NO (Normally Open) MGTP2-NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.90 (1 mtr) | Rs.99 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)

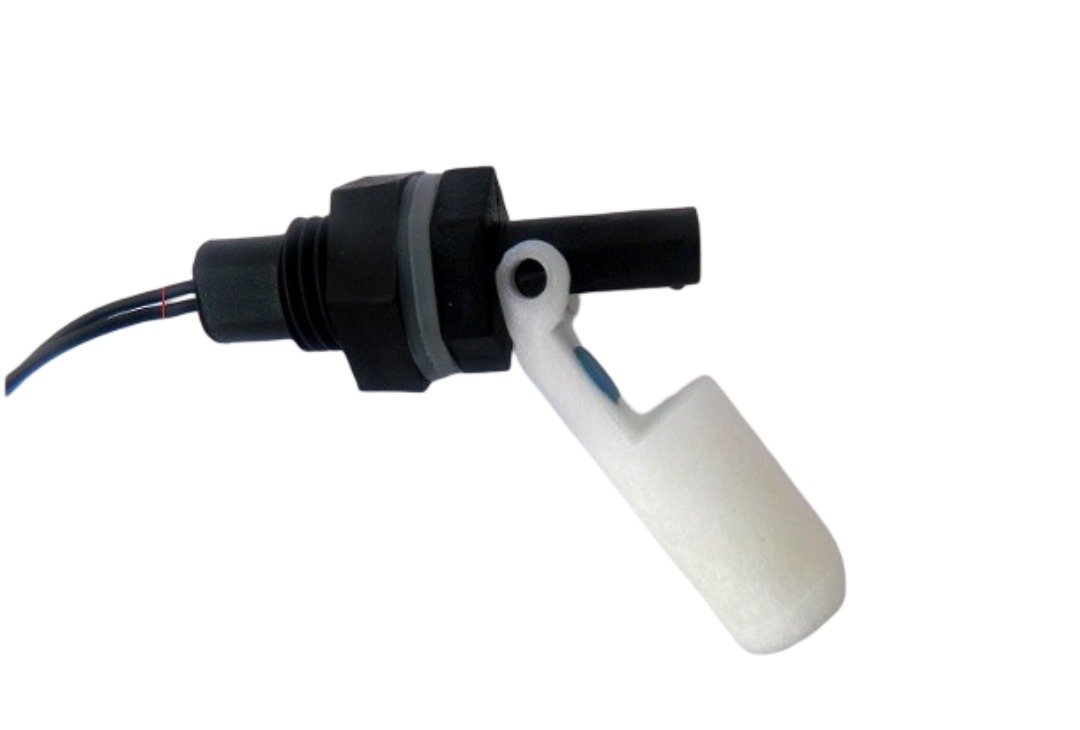

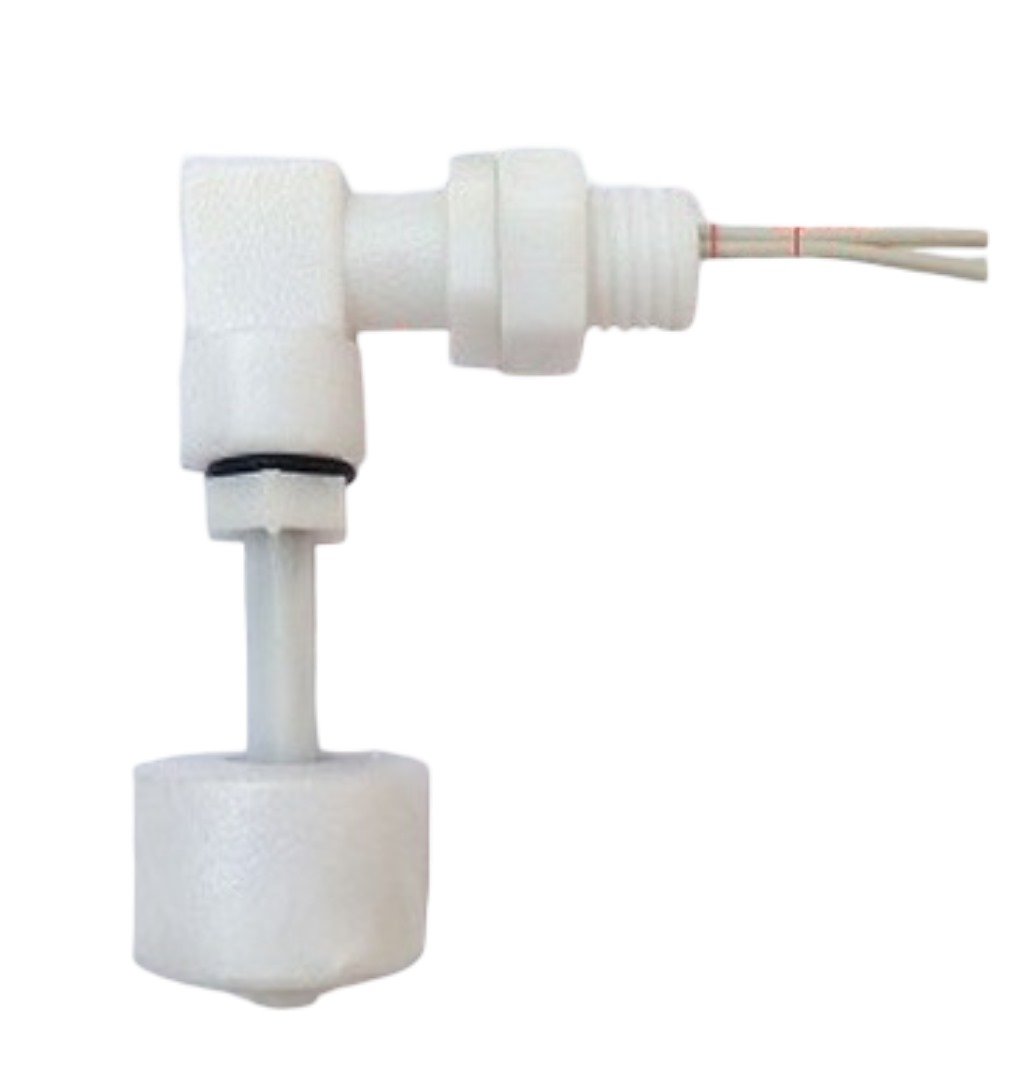

MAGNETIC FLOAT SENSOR HORIZONTAL(MGSM)
Description
A magnetic float sensor horizontal (MGSM) detects liquid level using a side-mounted magnetic float and reed switch mechanism. It is installed horizontally on the tank wall, allowing the float to move inward and trigger the switch. Ideal for high/low level control, pump protection, and water/chemical tank automation.
Electrical Characteristics
| Contact Form | Single Switch MGSM NO (Normally Open) - As per fixing NC (Normally Close) - As per fixing |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.95 (1 mtr) | Rs.105 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)
MAGNETIC FLOAT SENSOR REVERSIBLE(MGTP-REV)
Description
A reversible magnetic float sensor allows the float to be mounted in either orientation to choose NO or NC switching. It uses a magnetic float and reed switch to detect liquid level reliably. Ideal for flexible installation in tanks for pump control, automation, and level indication.
Electrical Characteristics
| Contact Form | Single Switch (REVERSIBLE ) MGTP-REV (NO,NC Possible by Reverse a Ring) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.95 (1 mtr) | Rs.99 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)

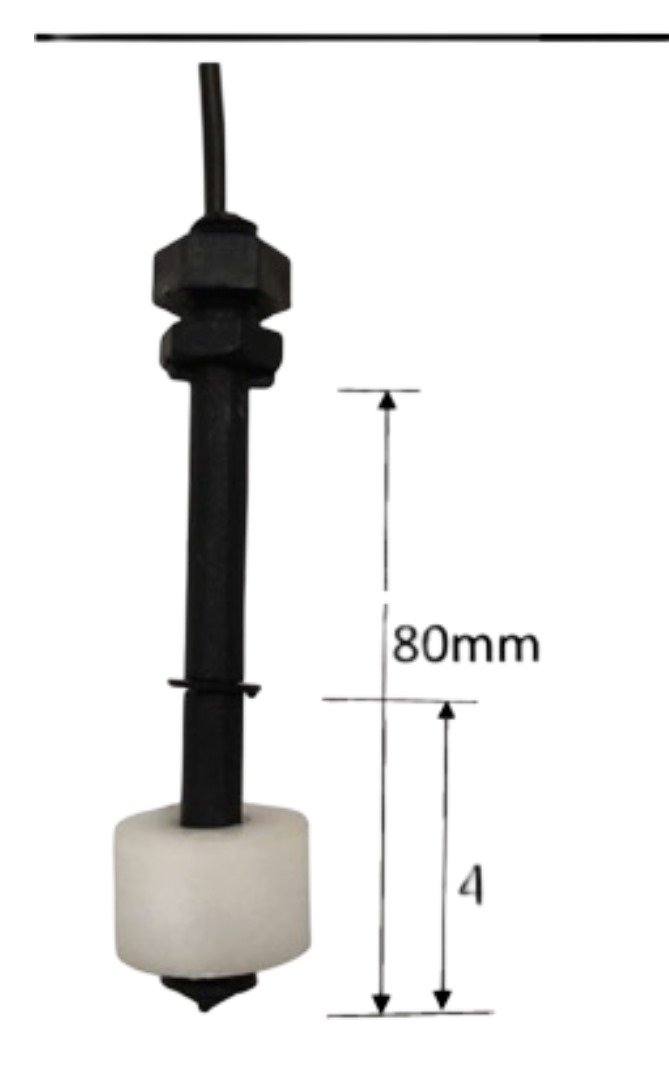

MAGNETIC FLOAT SENSOR VERTICAL(MGTP3-80MM)
Description
A magnetic float sensor vertical detects liquid level using an up-down moving magnetic float and internal reed switch. It is mounted vertically on the tank’s top or bottom for accurate point-level sensing.
Electrical Characteristics
| Contact Form | Single Switch MGTP3-80MM-NO (Normally Open) MGTP3-80MM-NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.93 (1 mtr) | Rs.103 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)

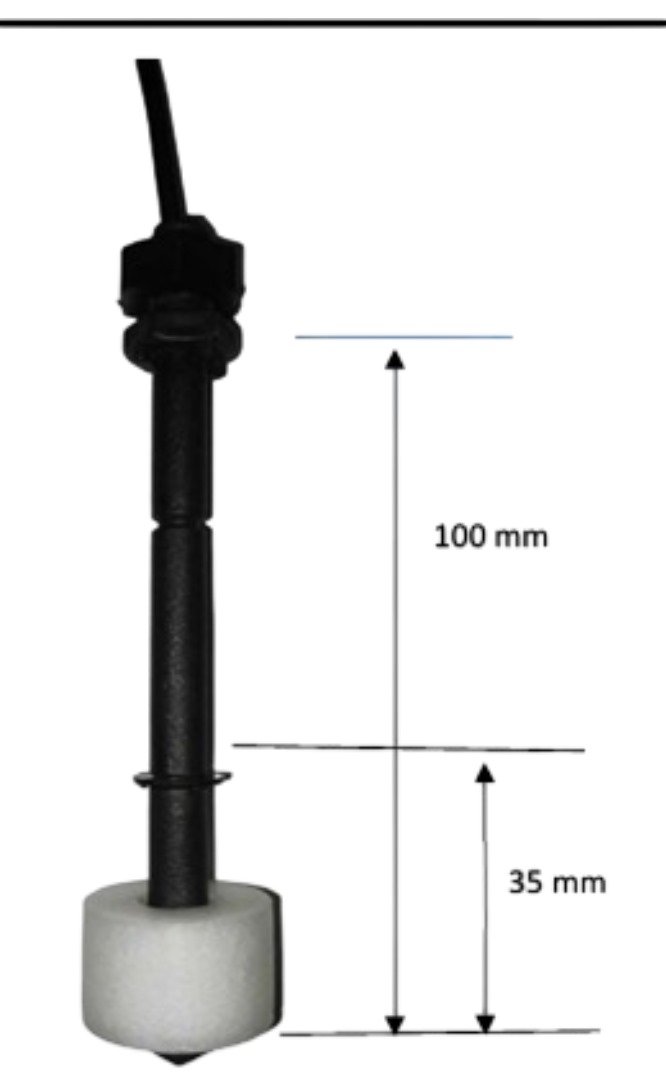

MAGNETIC FLOAT SENSOR VERTICAL(MGTP4-100MM)
Description
A magnetic float sensor vertical detects liquid level using an up-down moving magnetic float and internal reed switch. It is mounted vertically on the tank’s top or bottom for accurate point-level sensing. Suitable for water tanks, industrial liquids, pump control, and automation systems.
Electrical Characteristics
| Contact Form | Single Switch MGTP4-100MM-NO (Normally Open) MGTP4-100MM-NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.96 (1 mtr) | Rs.106 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)
MAGNETIC FLOAT SENSOR REVERSIBLE(MGPM-REV-¾” PIPECLIP)
Description
A reversible magnetic float sensor can be installed in either direction to select Normally Open or Normally Closed operation. It uses a magnetic float that activates a reed switch to sense liquid levels. Ideal for flexible mounting in tanks for pump control, alarms, and automation.
Electrical Characteristics
| Contact Form | Single Switch (REVERSIBLE ) MGTPM-REV (NO,NC Possible by Reverse a Ring) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.95 (1 mtr) | Rs.98 (2 mtr)
Per Piece (Min. Qty - 100 Pieces)

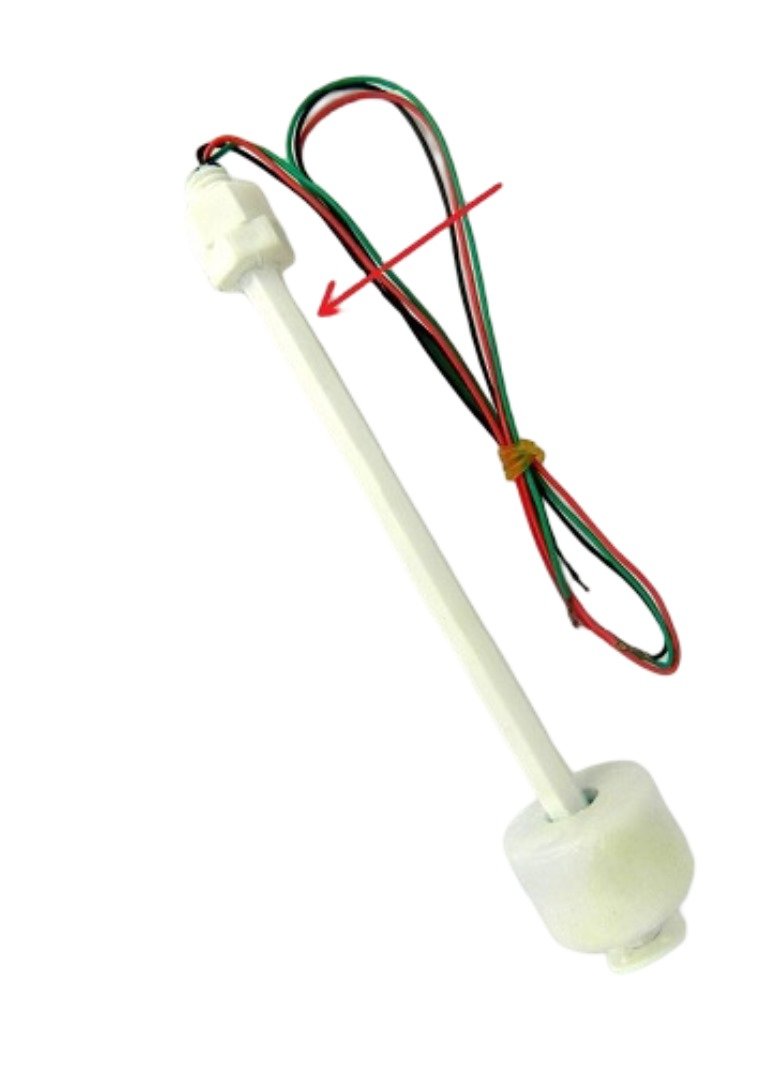

MAGNETIC FLOAT SENSOR VERTICAL(EE116DS)
Description
The MAGNETIC FLOAT SENSOR VERTICAL (EE116DS) is a top-mounted level sensor that uses a magnetic float and reed switch to detect liquid levels accurately. Its vertical design provides reliable point-level sensing in tanks and containers.
Electrical Characteristics
| Contact Form | Double Switch EE116DS A side (Normally Open) & B side (Normally Close) with Double Switch |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.150 Per Piece (Min. Qty - 100 Pieces)
(Exclusive of GST 18%)MAGNETIC FLOAT SENSOR VERTICAL(EESMV)
Description
The MAGNETIC FLOAT SENSOR VERTICAL (EE116DS) is a top-mounted level sensor that uses a magnetic float and reed switch to detect liquid levels accurately. Its vertical design provides reliable point-level sensing in tanks and containers.
Electrical Characteristics
| Contact Form | Single Switch EESMV - NO (Normally Open) EESMV - NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.98 Per Piece (Min. Qty - 100 Pieces)

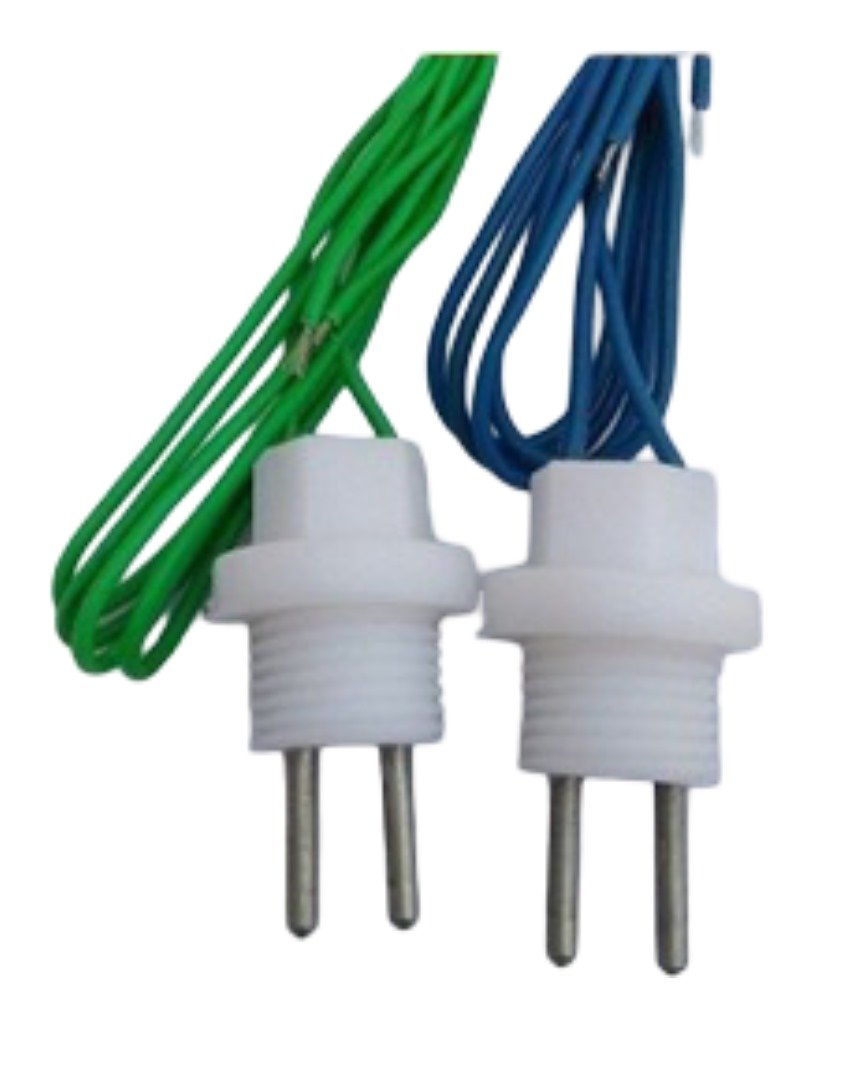

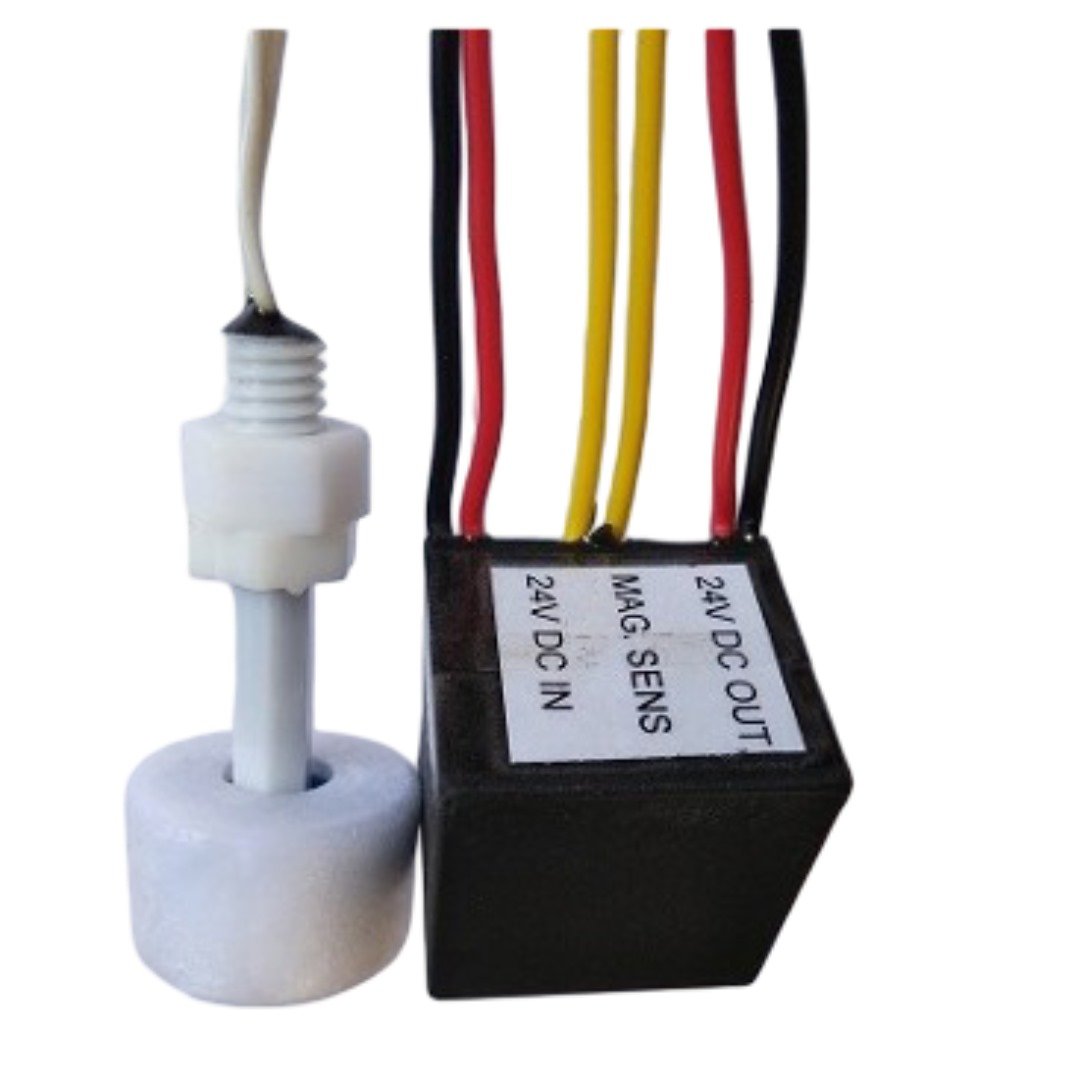

(Exclusive of GST 18%)DC SWITCHFORRO PURIFIERS(EEDCS-RO37MM)
The DC Switch for RO Purifiers (EEDCS-RO37MM) is a compact DC-operated switch used to control water flow and pump operation in RO water purifiers. It activates automatically based on pressure or water level inside the system. Designed for reliable, long-life performance in domestic and commercial RO units.
Electrical Characteristics
| Dc Switch | ·Input Voltage Rating : 24V DC ·output Voltage Rating : 24V DC ·Current Carrying : 2.5 Amp DC·Max Wire length: 10 inch |
|---|---|
| Contact Form | Single Switch Water Level Sensor-NC (Normally Close) |
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.160 Per Piece (Min. Qty - 100 Pieces)

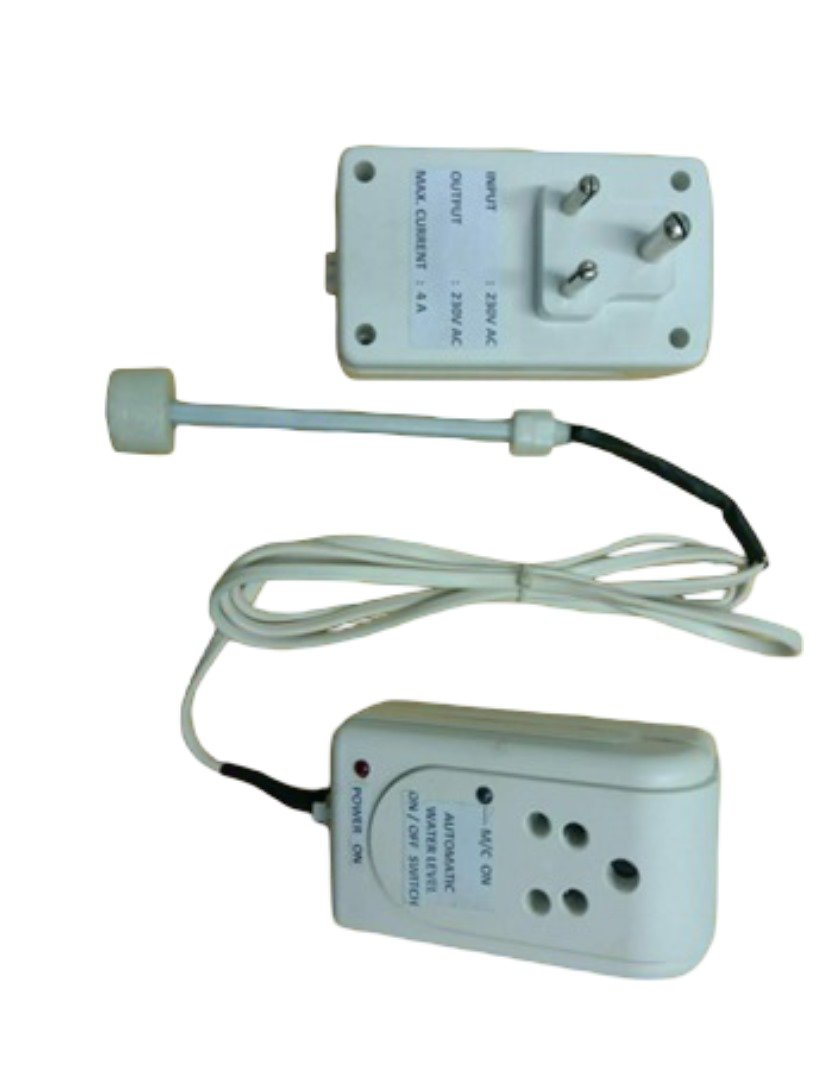

(Exclusive of GST 18%)AC SWITCH FOR WATER COOLER/DISPENSOR(EEACS-RO-116MM)
Description
The AC Switch for Water Cooler/Dispenser (EEACS-RO-116MM) is an AC-operated control switch used to regulate the pump and cooling system in water coolers and dispensers. It activates based on water flow or pressure to ensure proper operation.
Electrical Characteristics
| Automatic Water Level On/Off Switch | EEACS-RO ·Input Voltage Rating : 230V AC ·output Voltage Rating : 230V AC ·Current Carrying : 4 Amp DC ·Max Wire length : 1.5mtr |
|---|---|
| Contact Form | Double Switch EEFS-116MM3W A side (Normally Open) & B side (Normally Close) with Double Switch |
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.450 Per Piece (Min. Qty - 100 Pieces)

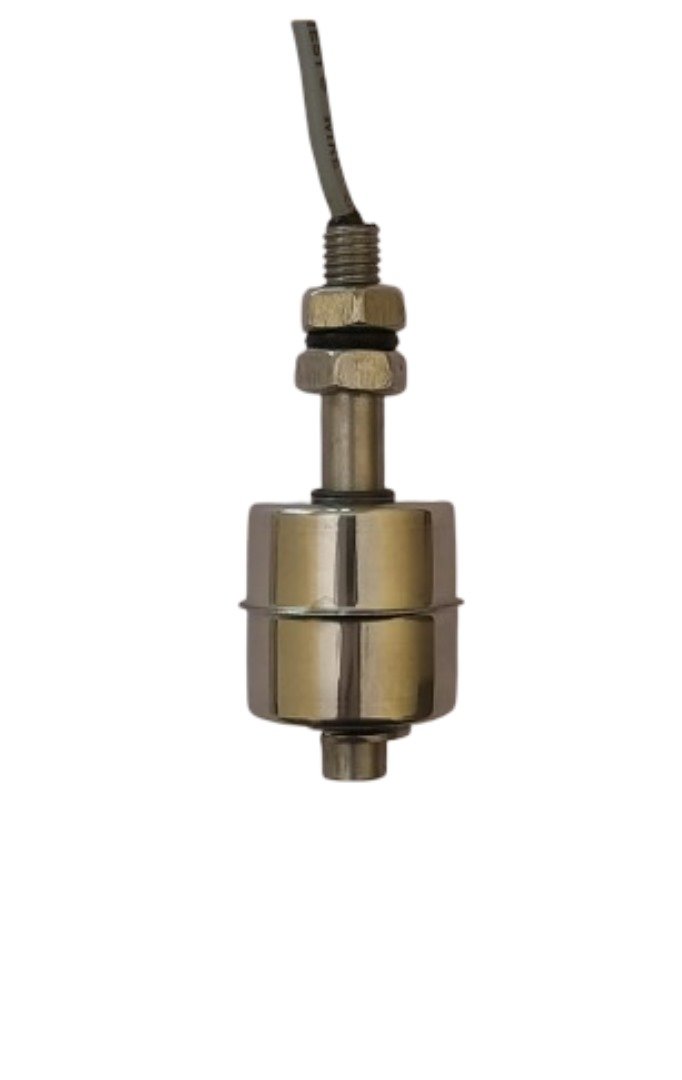

(Exclusive of GST 18%)MAGNETIC FLOAT SENSOR VERTICAL STAINLESS STEEL (EEVER46SS)
Description
The Magnetic Float Sensor Vertical Stainless Steel (EEVER46SS) offers precise liquid level sensing with a corrosion-resistant stainless-steel body. It is designed for vertical mounting in tanks and harsh industrial environments. Ideal for water, chemical, and process-control applications requiring long service life.
Electrical Characteristics
| Contact Form | Single Switch EEVER46SS - NO (Normally Open) EEVER46SS -NC (Normally Close) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.450 Per Piece (Min. Qty - 100 Pieces)

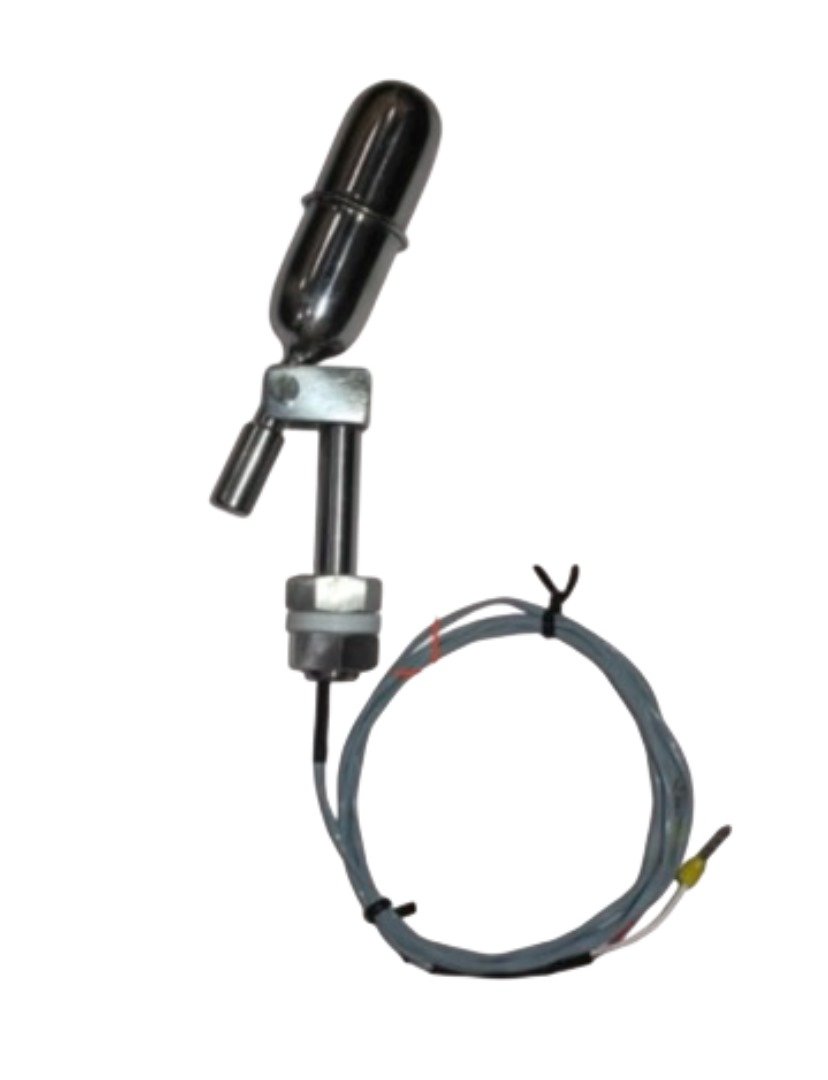

(Exclusive of GST 18%)MAGNETIC FLOAT SENSOR HORIZONTAL STAINLESS STEEL(MGHOR70SS)
Description
The Magnetic Float Sensor Horizontal Stainless Steel (MGHOR70SS) provides accurate liquid level detection with a durable, corrosion-resistant stainless-steel design. It is mounted horizontally on tank walls for side-level sensing.
Electrical Characteristics
| Contact Form | Single Switch MGHOR70SS (NO or NC ) |
|---|---|
| Contact Rating (Max) | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.650 Per Piece (Min. Qty - 100 Pieces)
(Exclusive of GST 18%)GAS GEYSER INLINE SENSORm(PRESSURESENSOR) (EEGAS)
Description
The Gas Geyser Inline Pressure Sensor (EEGAS) detects water pressure to activate and control gas geyser ignition automatically. It ensures proper burner operation only when sufficient water flow is present. Designed for safe, reliable, and efficient performance in domestic gas geyser systems.
Electrical Characteristics
| Contact Form | Single Switch NO (Normally Open) |
|---|---|
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
| Customization | Available on Demand |
Material
| Housing | Delrin |
|---|---|
| Float | PP Foam |
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Rs.50 Per Piece (Min. Qty - 100 Pieces)

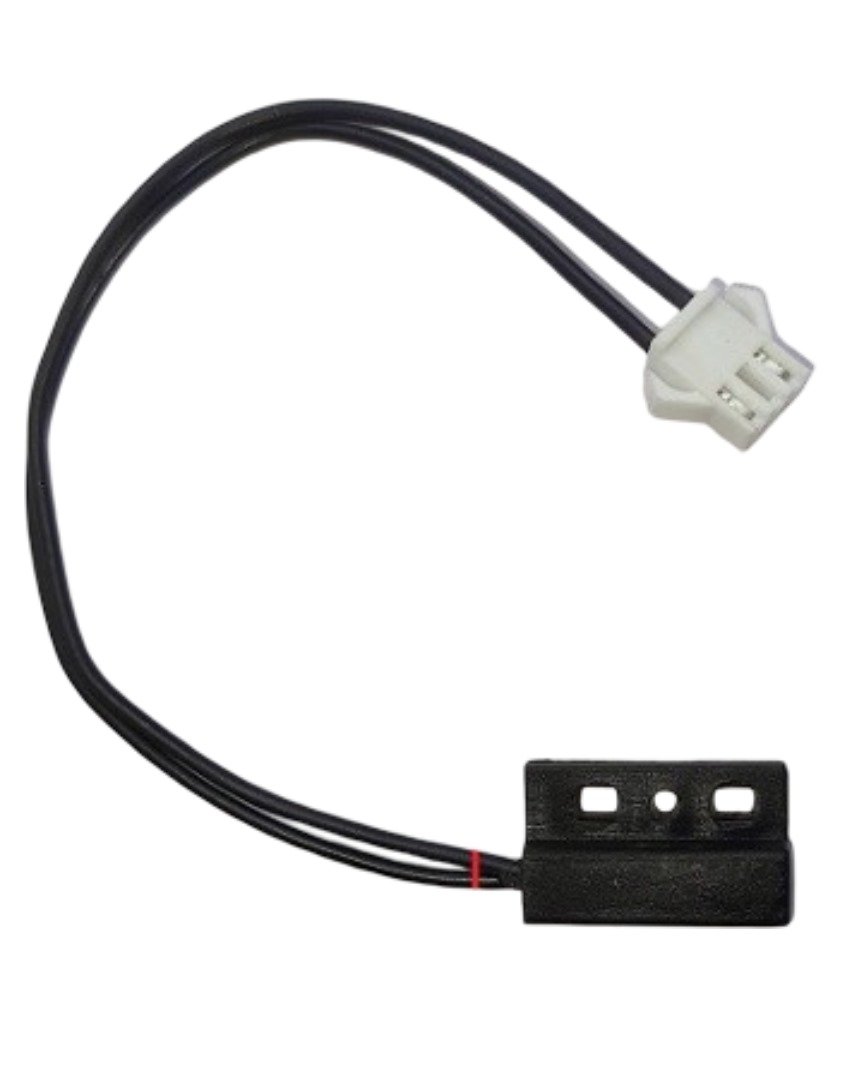

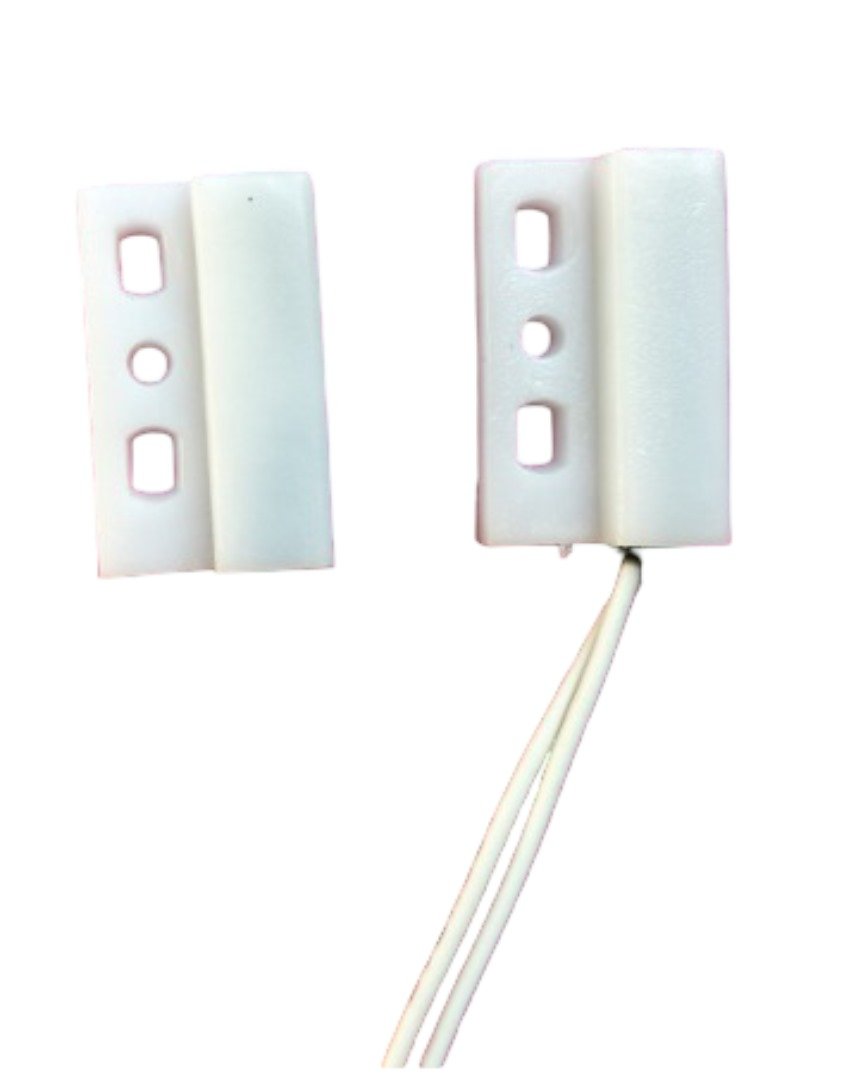

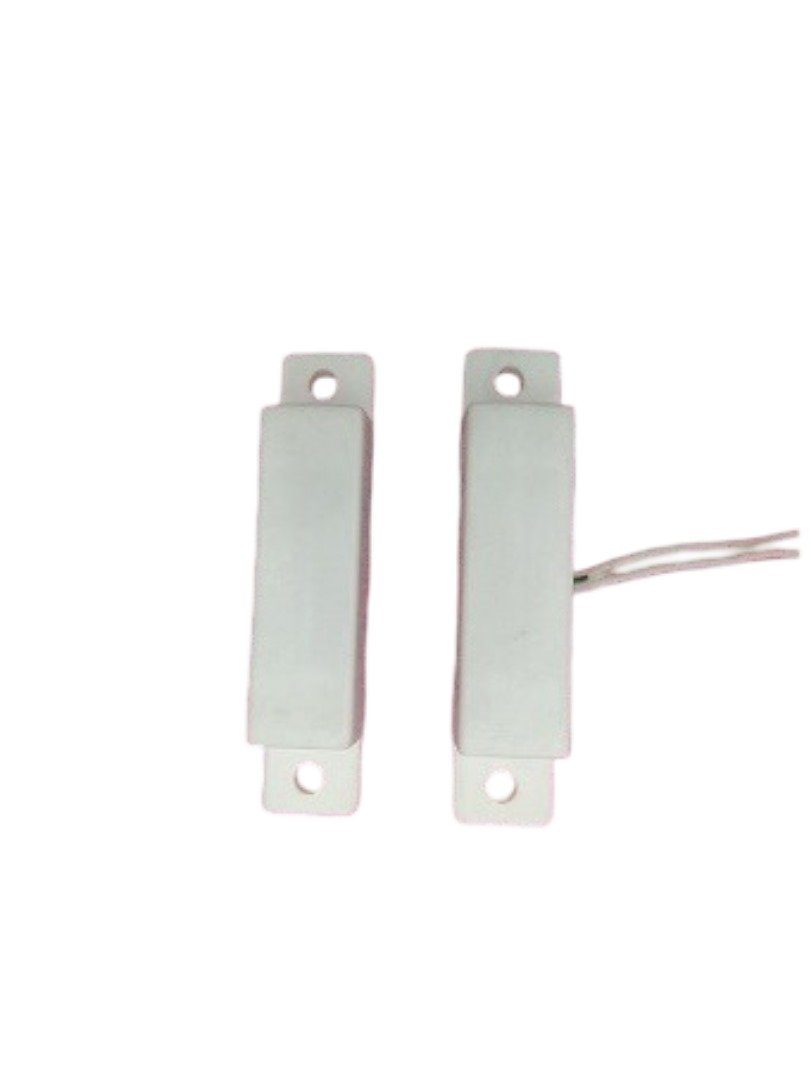

(Exclusive of GST 18%)MAGNETIC DOOR SENSOR(EEDR1)
Description
The Magnetic Door Sensor (EEDR1) detects the opening and closing of doors using a magnetic reed switch mechanism. It provides reliable triggering for security alarms, access control, and automation systems.
Electrical Characteristics
| Contact Form | Single Switch NO (Normally Open) A Side NC (Normally Close) B |
|---|---|
| Contact Rating, Max | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 1.5 Meters |
Material
| Housing | Delrin |
|---|---|
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Type NO Rs.90/- Type NC Rs.180/- Per Piece (Min. Qty - 50 Pieces)
(Exclusive of GST 18%)MAGNETIC DOOR SENSOR (EEDR2)
Description
The Magnetic Door Sensor (EEDR2) offers reliable detection of door opening and closing using a high-sensitivity magnetic reed switch. It is designed for enhanced durability and consistent performance in security and automation systems
Electrical Characteristics
| Contact Form | Single Switch NO (Normally Open) A Side NC (Normally Close) B Side |
|---|---|
| Contact Rating, Max | 10W |
| Switching Voltage (Max) | 100 VDC |
| Switching Current (Max) | 0.5 Amp DC |
| Ideal Operational Rating | 10 VDC and <50m Amp DC |
| Life Expectancy (Min) | 0.5x10 6 Vertical Switching Cycles |
| Installation | Vertical |
| Wire Length | 12 inch |
Material
| Housing | Delrin |
|---|---|
| Potting | PU / Epoxy |
Basic Price (Exclusive of GST 18%)
Type NO Rs.80/- Type NC Rs.180/- Per Piece (Min. Qty - 50 Pieces)

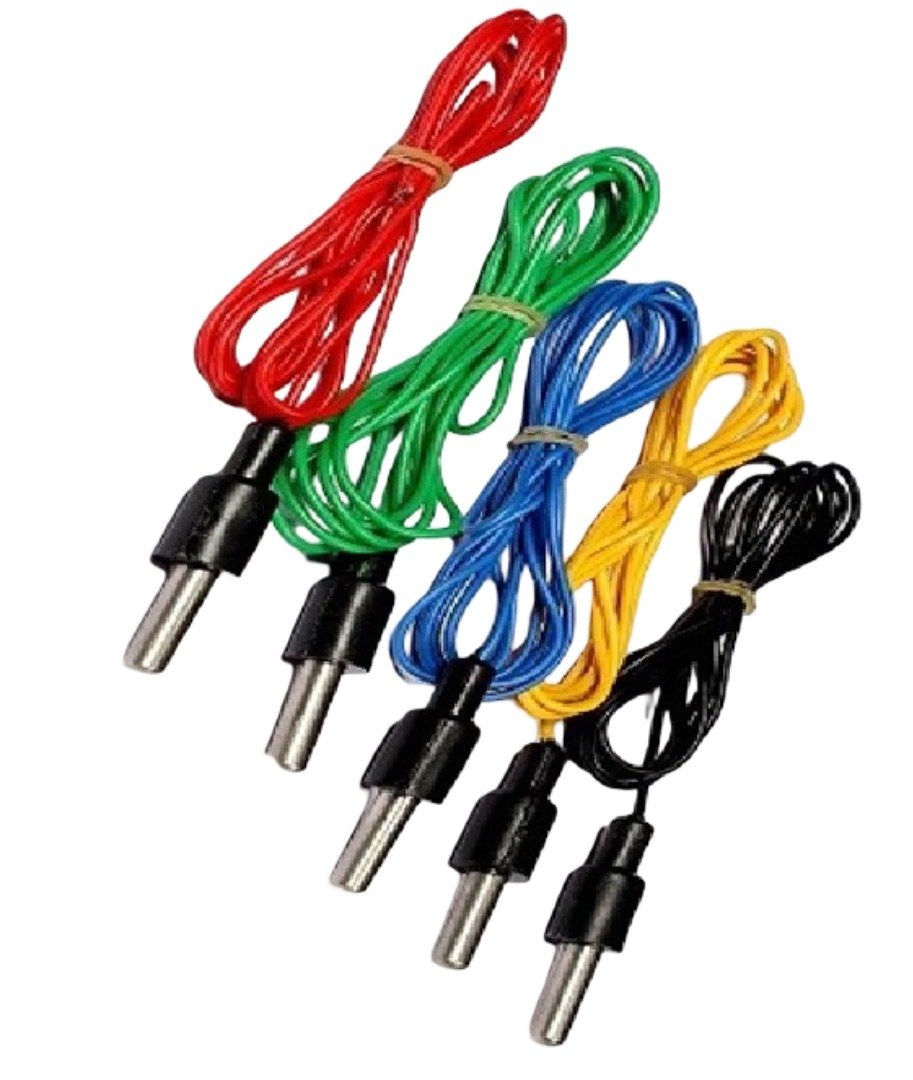

(Exclusive of GST 18%)CONTACT TYPE SINGLE PIN SENSORS(EESP)
Description
The Contact Type Single Pin Sensor (EESP) detects liquid presence through direct contact using a single conductive pin. It provides quick and reliable level sensing for small tanks and appliances. Ideal for RO systems, water dispensers, and compact liquid-level control applications.
Electrical Characteristics
| Contact Form | Single Switch Single Pin Contact Sensor |
|---|---|
| Mounting Type | Immersible/Hanging in tank |
| Switching Voltage, MaxType | Suitable for low-voltage control signal(5v-12v DC) |
| Colour Options | Red,Green,blue,Yellow,Black |
| Temperature Range | 0 Deg to 80 Deg |
| Wire length | 1.5mtr |
Material
| Housing | Polypropylene (Molded) |
|---|---|
| Potting | SS-316 |
Basic Price (Exclusive of GST 18%)
Rs.28/- Per Piece (Min. Qty - 100 Pieces)
(Exclusive of GST 18%)CONTACT TYPE DOUBLE PIN SENSORS(EEDP) (INLINEFLOWSENSOR)
Description
The Contact Type Double Pin Sensor (EEDP) – Inline Flow Sensor detects water flow by sensing conductivity between two contact pins. It ensures accurate flow or level detection in compact water systems. Ideal for RO purifiers, dispensers, and small appliances requiring reliable inline sensing.
Electrical Characteristics
| Contact Form | Single Switch DOUBLE Pin Contact Sensor |
|---|---|
| Mounting Type | Immersible/Hanging in tank |
| Switching Voltage, MaxType | Suitable for low-voltage control signal(5v-12v DC) |
| Colour Options | Red,Green,blue,Yellow,Black |
| Thread | 1/2” BSP |
| Wire length | 1 mtr |
Material
| Housing | Polypropylene (Molded) |
|---|---|
| Potting | SS-316 |
Basic Price (Exclusive of GST 18%)
Rs.42/- Per Piece (Min. Qty - 100 Pieces)

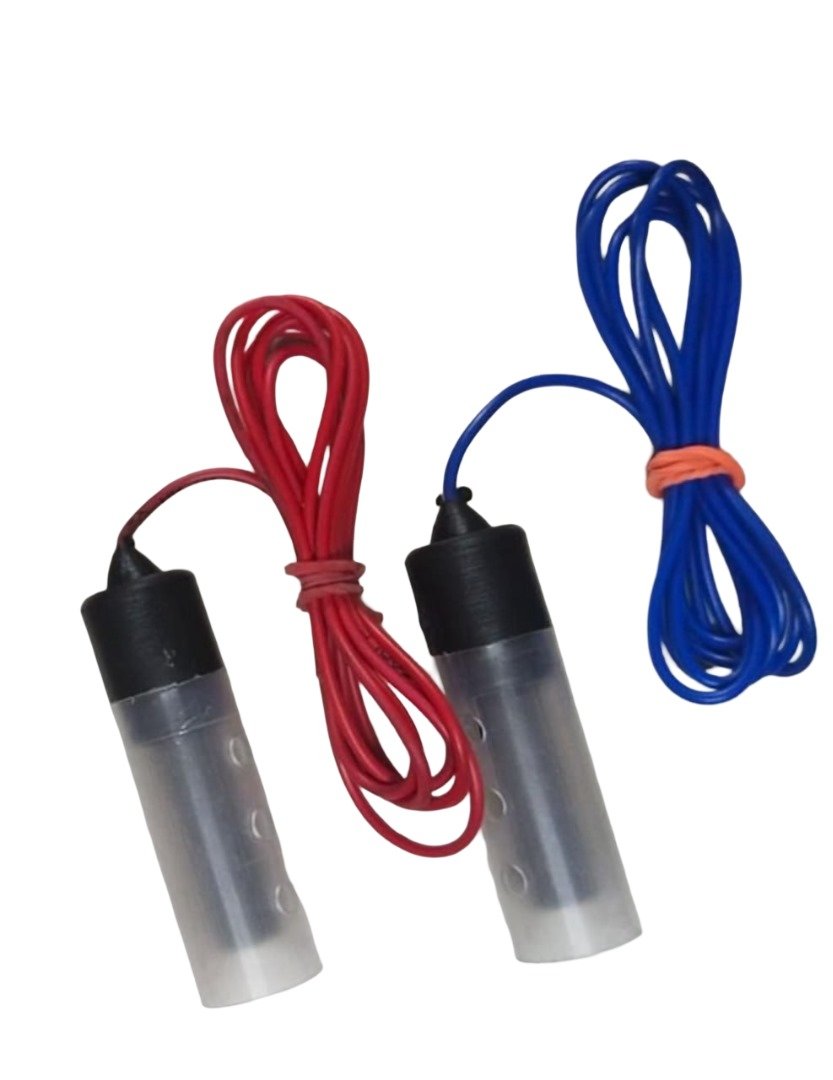

(Exclusive of GST 18%)CARBON TYPE SINGLE PIN SENSORS(CARBON) WITH TRANSPARENT CASING
Description
The Carbon Type Single Pin Sensor (CARBON) with Transparent Casing uses a carbon pin to detect water presence with improved durability and corrosion resistance. Its transparent casing allows easy visual inspection of the sensor
Electrical Characteristics
| Contact Form | Single Switch Single Pin Contact Sensor |
|---|---|
| Mounting Type | Immersible / Hanging in tank/Pendulam |
| Switching Voltage, MaxType | Suitable for low-voltage control signal(5v-12v DC) |
| Colour Options | Red,Green,blue,Yellow,Black |
| Temperature Range | 0 Deg to 80 Deg |
| Wire length | 1.5 mtr |
Material
| Housing | Polypropylene (Molded) |
|---|---|
| Pin | Carbon |
Basic Price (Exclusive of GST 18%)
Rs.28/- Per Piece (Min. Qty - 100 Pieces)
(Exclusive of GST 18%)CONTACT TYPE SINGLE PIN SENSORS WITH TRANSPARENT CASING
Description
The Contact Type Single Pin Sensor with Transparent Casing provides fast and accurate liquid detection using a single conductive pin. Its transparent casing allows easy visual inspection and ensures reliable performance.
Electrical Characteristics
| Contact Form | Single Switch Single Pin Contact Sensor |
|---|---|
| Mounting Type | Immersible/ Hanging in Tank / Pendulam |
| Switching Voltage, MaxType | Suitable for low-voltage control signal(5v-12v DC) |
| Colour Options | Red,Green,blue,Yellow,Black |
| Temperature Range | 0 Deg to 80 Deg |
| Wire length | 1.5 mtr |
Material
| Housing | Polypropylene Transparent Casing |
|---|---|
| Pin | SS-316 |
Basic Price (Exclusive of GST 18%)
Rs.28/- Per Piece (Min. Qty - 100 Pieces)

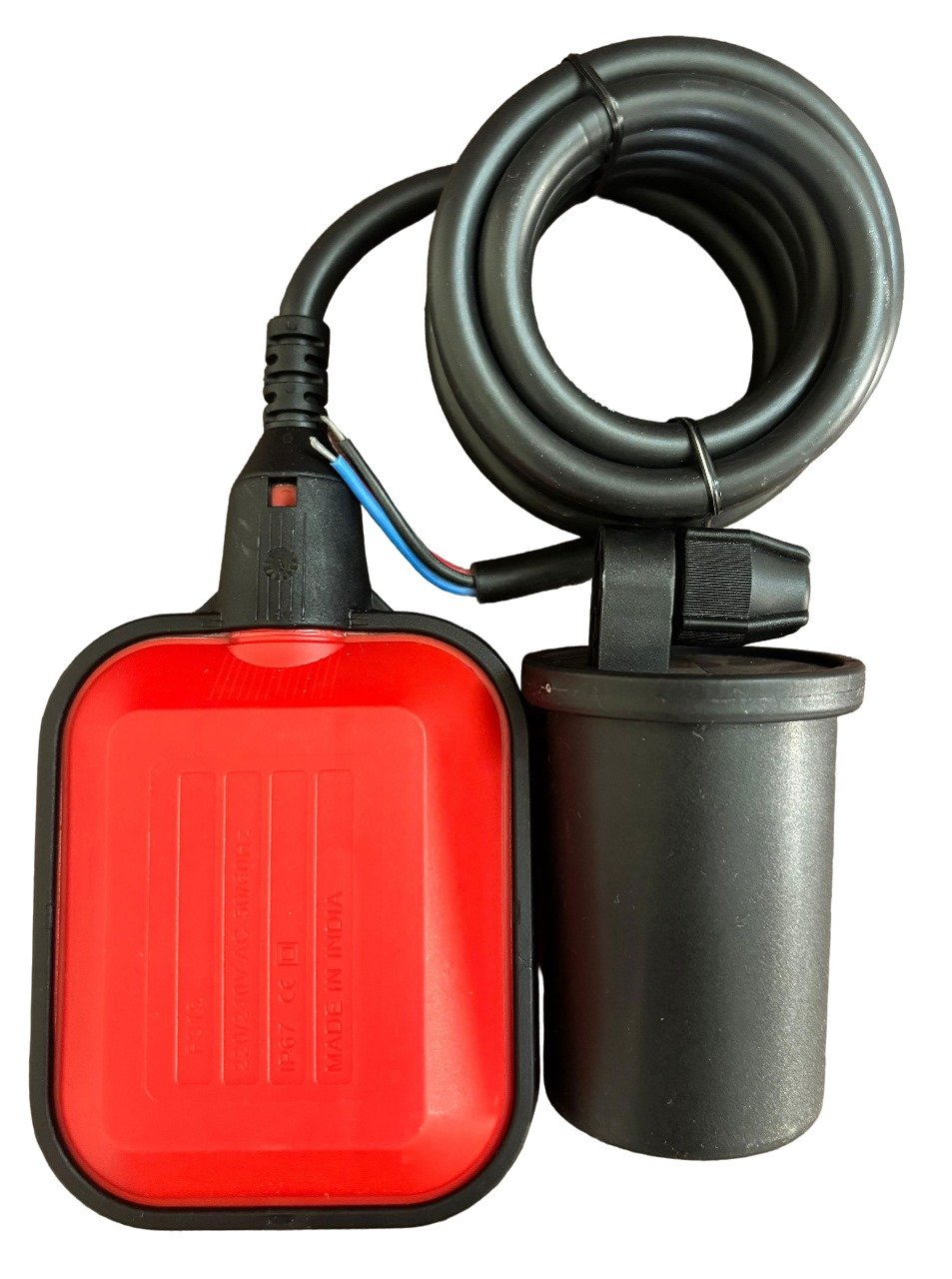

(Exclusive of GST 18%)CABLE TYPE FLOAT SWITCH(FT2M)
Description
The Cable Type Float Switch (FT2M) is a reliable water-level control device that operates by floating up and down with changing liquid levels. It uses a heavy-duty cable and internal switch mechanism for accurate pump ON/OFF control.
Electrical Characteristics
| Contact Form | Single Switch Mechanical Switching COM-Red,NO-Black,NC-Blue |
|---|---|
| Outout Type | SPDT( 1NO,1NC) |
| Switching Voltage, Max | 220-240v |
| Limit Switching Current,Max | 10Amps at 240V |
| Differential Switching Angle | 45 Deg |
| Operating Temperture Max. | 60 Deg |
| Rated no.of Operations | 50000 |
| Installation | Vertical/Hangingion |
| Wire length | 2 meters |
| IP Rating | IP67 |
Material
| Housing | ABS |
|---|---|
| WIRE | 1.5SQ MM |
| WEIGHT in gm | 662gm |
Basic Price (Exclusive of GST 18%)
Rs.450/- Per Piece (Min. Qty - 50 Pieces)
(Exclusive of GST 18%)
